T-F-RM LOW PRESSURE PUMPS
Main application fields
| • Food | • Construction |
| • Dairy Products | • Ceramic |
| • Chemical | • Water treatment |
| • Pharmaceutical | • Tanning |
| • Cosmetic | • Galvanic treatments |
| • Textile | • Mining |
| • Pulp & Paper | • Batteries |
Typical applications
• Egg white and yolk, edible fats, natural flavours, chocolate, ice creams, dietary food, milk, yoghurt
• Pigments for plastic, acids, solvents, polyester mixtures, detergents
• Toothpaste, shampoo, soaps, creams
• Bleaches, dyes, size
• Adhesives, dyes, retainers, microbicidals
• Paints, pigments for tiles and bricks, concrete additives, paste, silk-screen enamels, dyes
• Lime milk, polyelectrolyte, caustic soda, mud in suspension: iron chloride, iron sulphate
• Distilled water, acids
General Features
• P.D.: an excellent dosing pump
• Self-priming: no level differential required
• Neither valves, nor stuffing box: It can handle unrefined liquid even with small suspended particles
• Does not emulsify, nor does it create turbulence: recommended for some non-emulsifiable liquids
• Dry-operation: The pump can be dry opeated without any damage to mechanical parts
• Vacuum: it can be used as a vacuum pump
• Reversible: easy to clean thanks to the reversible rotating direction
• Limited maintenance: Minimum time for maintenance; very easy hose replacement.
Operation
Two opposed revolving rollers alternatively press a hose against a patented concentric guide.
Vacuum is created as the hose returns to its original position and this causes the suction of the material which is pushed forward by the second roller.
Particularly suitable to convey dirty liquids, thick and viscous mixtures as well as abrasive and corrosive liquids.
The only lubrication is a silicone film on the pressure roller.

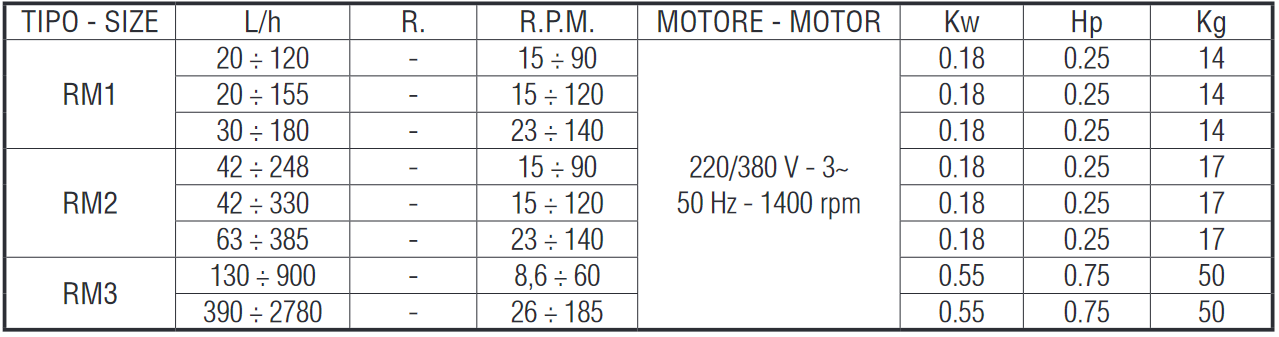

Technical Data
Materials of construction
| Body/carter | Aluminium alloy |
| Pressure roller | Nylatron |
| Guidance block | Aluminium |
| Pressure roller adjusting device | Welded steel plate |
| Connections | Teflon |
| Small parts | Steel |
| Treatments | Painting/nickel-plating |
